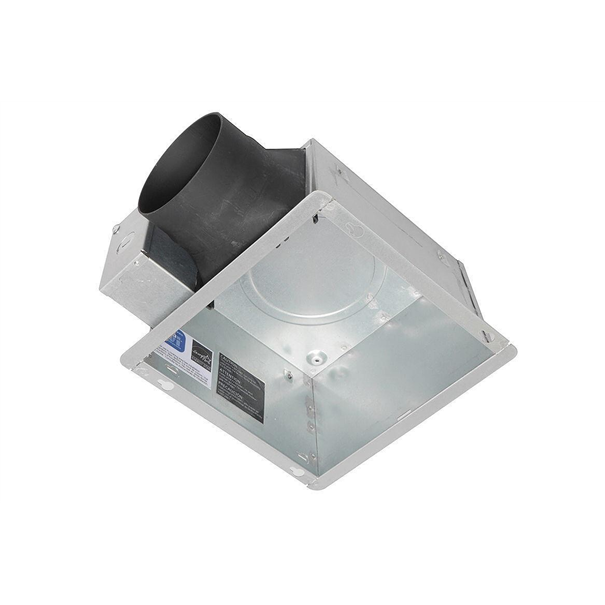

Ecovent Rough-in Fan Housing Can, Motor/Grille Sold Separately (FV-07VBB1)
SKUFV-07VBA1A
Documents
Description
Ventilating fan shall be Low Noise ceiling mount type rated for continuous run. Fan shall be ENERGY STAR® rated and certified by the Home Ventilation Institute (HVI). Evaluated by Underwriters Laboratories and conform to both UL and cUL safety standards.- 70 cfm, cost-effective energy Star® solution - 0.7 sones at 0.1 in wg (56 cfm/1.3 sones at 0.25 in wg)
- Unique Veri-Boost™ integral switch provides ventilation verification assurance via a 20 cfm boost
- Provides ventilation verification assurance - >=50 cfm installed performance
- Small grille design complements the aesthetics of your bathroom, powder room or laundry room
- Housing and motor/grille packaged separately, reduces risk of parts being lost or damaged onsite
- Built-in metal flange provides blocking for penetrations through drywall as an air barrier and assists with the decrease in leakage in the building envelope during blower door testing
- UL Listed for tub/shower enclosure when used with a GFCI protected circuit
- Single connection
- Replaces FV-07VBA1
- Duct Diameter: 4 inFlow Rate: 90 cfmMounting Type: CeilingType: Fan Rough-In PackSones: 1.1 to 2Series: EcoventHumidity Sensing: NoGrille Length: 9-1/2 inGrille Material: PlasticGrille Width: 9-1/2 inHousing Height: 4-3/4 inHousing Length: 7-7/8 inHousing Material: MetalHousing Width: 7-7/8 inMotion Sensing: NoVoltage Rating: 120
- New Residential Construction Applications
- ASHRAE 62.2
- LEED Certified
- ENERGY STAR® 3.0 Certified
- PROP65: Cancer - www.p65warnings.ca.gov
- 3 years
