1/15-1/20-1/25 HP Refrigeration Motor, 1550 RPM, 1 Speed, 230 Volts, 3.3" Mount, TEAO
SKU9210H
Description

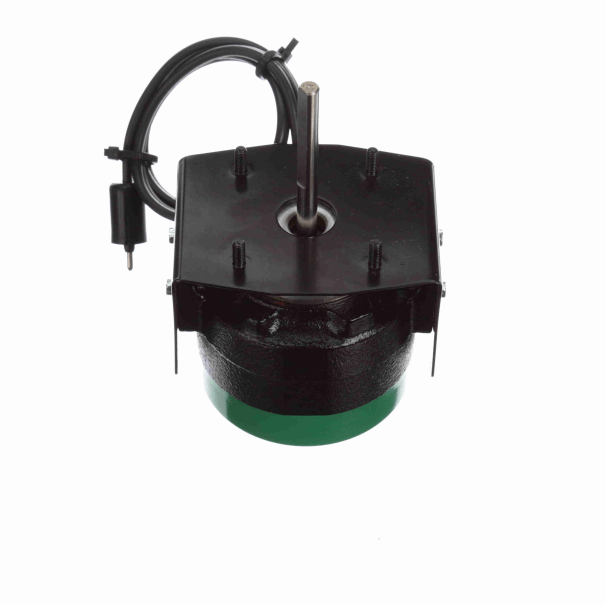

The Century® 9210H is a 20-1/25 HP refrigeration motor designed to drive evaporator and condenser fans in compatible walk-in coolers, reach-in coolers, and similar commercial refrigeration equipment. It operates at 1550 RPM on 230 Vac 60 Hz power, draws 0.77 amps, and features a totally enclosed air over construction. The 5/16-inch flat shaft supports clockwise lead-end rotation for direct fan attachment. Refrigeration technicians install the motor as a compact replacement when shaft, rotation, and voltage match the existing fan assembly.$304.72
each2 In Stock
or for lower prices
Have a question? Call or text us at 855-793-7877.
- iMotor™ - Refrigeration Motor
- Extended Studs Shaft End
- Unit Bearing
- Electronically Commutated (ECM)
- Thermally Protected
- Totally Enclosed Air Over
- Class A Insulation, 40°C Ambient
- Bearing - Unit
- 5/16 in Diameter Shaft with Flat
- 16 in Leads with Molded Plug
- Ambient Temperature Rating: 104 °FCurrent/Amps: 0.77Enclosure Type: Totally Enclosed Air OverFrequency Rating: 60Insulation Class: AMaterial: Cast IronMaximum Speed: 1550Modes of Protection: AutomaticMotor HP: 0.07Mounting Type: Extended StudsNumber of Phases: 1Number of Poles: 4Number of Speeds: 1Power Rating: 0.05Rotation: Clockwise Lead EndService Factor: 1Shaft Diameter: 0.312Shaft Type: FlatStarter Type: Across The LineVoltage Rating: 230
