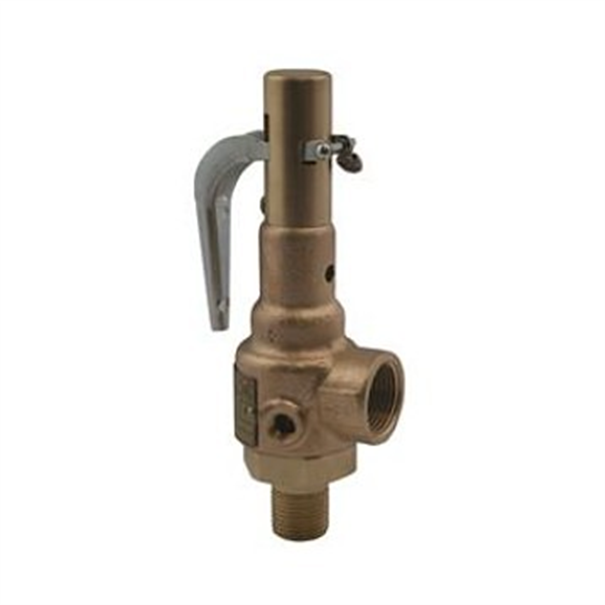

1-1/4 x 1-1/2 in ASME Sec VIII Steam Bronze Safety Relief Valve w/ Brass Trim, 165 lb, Metal Seat, MNPT x FNPT
SKU19MGFL165
Description
Apollo 19-MGFL_165 1-1/4 x 1-1/2 in ASME Sec VIII Steam Bronze Safety Relief Valve w/ Brass Trim, 165 lb, Metal Seat, MNPT x FNPT$598.52
each3 In Stock
or for lower prices
- ASME Section I & VIII Certified Capacities
- 5 - 300 psig Set Pressures @ -60°F min / 406°F max
- Stainless Steel Wetted Trim (19L, 19S)
- Made in the USA
- Set pressures and temperatures vary by model. Refer to catalog for sizing and selection information
- Nominal Size: 1-1/4 x 1-1/2 inPressure Rating: 165 lbsEnd Style: MNPT x FNPTType: Relief ValveSeries: 19MGFLBody Material: BronzeMedia: Steam
- ASME Section I Power Boilers
- ASME Section VIII Div 1 Pressure Vessels
- Canadian Registration Number 0G8547.5C Pressure Equipment Directive 2014/68/EU (PED)
- ASME Sections I & VIII capacity certified safety valve for overpressure protection of steam power boilers, pressure piping systems, pressure vessels, piping and similar equipment. Suitable for steam, air and non-hazardous gases.
